Multi-Directional, Unrestricted Movements within a 3D Workspace
ZeroG 3D is a robotic body-weight support system which automatically tracks patients as they move freely in any direction. The dynamic body-weight support offloads a percentage of the patient’s weight as they perform activities in a full 3-dimensional workspace, while the advanced fall protection provides the highest level of safety. Patients can now freely practice gait, balance, and ADLs in both the vertical and horizontal planes.
Dynamic Body-Weight Support
ZeroG 3D can maintain a consistent level of body-weight support regardless of vertical movements. For example, if the amount of unloading is set to 20%, the patient will always feel 20% lighter even when going from a sitting to standing position.
Advanced Fall Protection
Falls are prevented by controlling the range of motion or by the rate of vertical descent. Each mode is selected depending on the patient’s needs and the activities being performed. Integrated fall cushioning helps soften the impact when a fall is prevented.

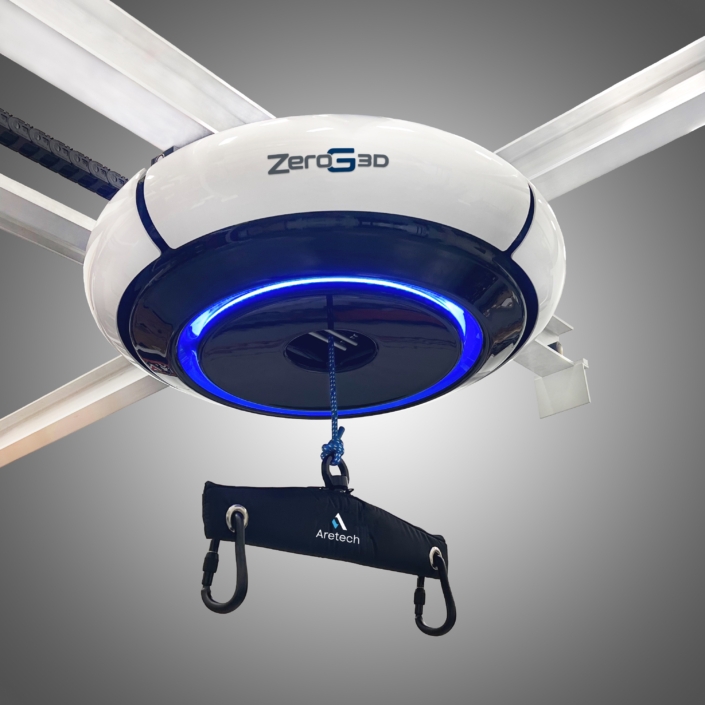

Robot Tracking
The 3D robot tracks the patient’s movements throughout the entire workspace, offering them full freedom of movement.
3D Workspace
The ZeroG 3D workspace can be designed in an area up to 500 square feet. Gait, balance, and functional activities of daily living are performed within the workspace safely with dynamic body-weight support and fall protection. The 3D robot tracks the patient’s movements throughout the entire space, giving them full freedom of movement.
Real-World Simulation
The 3D robot tracks the patient’s movements throughout the entire workspace, offering them full freedom of movement.
Flexibility
Position therapy equipment anywhere within the space in any direction.
Gait and Balance
Limit movements to straight line walking or create paths using customizable boundaries. ZeroG 3D allows patients with a wide range of abilities to use the system.
Customizable Boundaries
For patients who need additional support, boundaries of varying widths can be created along each axis to limit the lateral movement. This versatility empowers the therapist to provide assistance when needed, yet offers unparalleled freedom to patients!
Path – Long Axis
Allows patients to walk the long length of the workspace, navigating a customizable path width.
Path – Short Axis
Constrains patients to the short length of the workspace, with customizable path width
3-Dimensional Box
Allows the patient to move in 3-dimensions within a restricted area
Accessories
Sprintex Slat-Belt Treadmills
Medical grade treadmill with a slat-belt walking surface. Optional clinician seating can be added when manual assisted treadmill training is anticipated.
Heart Rate Monitor &
Pulse Oximeter
Measure SpO2 and heart rate during a training session and over time. Set audio and visual alerts in the ZeroG 3D software to help monitor patient vitals.
Crawling Accessory
Practice pre-gait activities with the crawling accessory. The light-weight pulleys automatically re-direct the unloading forces from mid-back to the shoulders as patients move from quadruped to sitting to standing.
Technical Specifications
Body-Weight Support: Dynamic 10-200 lbs | Static up to 450 lbs
User-Interface: Touchscreen Windows PC and wireless remote
Installation: Ceiling mounted, 300 sq. ft standard, 9′ 4″ min ceiling height
Safety: Emergency lower, hard-wired e-stop, redundant sensing, FDA Listed
Electrical: 1 x 208-230 VAC, 20 amp, 1 x 110 VAC, 10 amp
Warranty: 2 years on all hardware (1-year on harnesses)
