Treadmill Training in a Motivating Environment

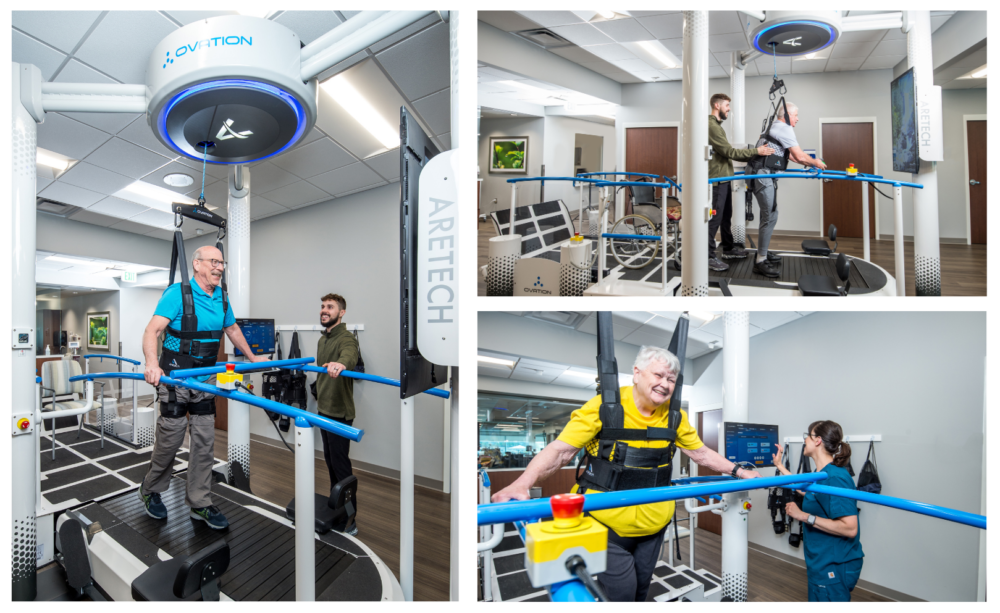

Ovation is a treadmill system with dynamic body-weight support and fall protection for patients up to 700 pounds. The dynamic body-weight support can offload up to 300 pounds of the patient’s weight as they walk on the treadmill, while the advanced fall protection provides the highest level of safety. An Infotainment Display is mounted in front of the patient and provides important training metrics and an engaging experience.
Innovative Design
The attention-grabbing and functional design is a powerful addition to any rehabilitation gym. The system was crafted from the ground up to make treadmill training accessible for a wide range of patients. This versatility empowers therapists to get their patients up and walking at high-intensity without the risk of falling.
The robotic unloading system provides precise dynamic body-weight support and fall protection while the patient views the Infotainment Display, providing goals and training metrics in real-time. The therapist can use either the 24 inch touchscreen or wireless tablet to make changes to the system and tailor the session to each patient’s needs.
DualArrest Fall Protection
Ovation is equipped with DualArrest Fall Protection, ensuring a secure experience by automatically stopping the treadmill upon detecting a fall. The customizable distance for preventing a fall ranges from 1 to 10 inches, providing flexibility according to individual needs.
Dynamic Body-Weight Support
Ovation can offload a patient’s weight with dynamic body-weight support making them feel up to 300 pounds lighter. Adjustments to the level of body-weight support can be made at the touch of a button by pounds or percentage to modify the therapy intensity.
Infotainment Display
The Infotainment Display, positioned in front of the patient, enhances the therapy experience with an interactive and engaging session while displaying important training information.
Slat-Belt Treadmill
The walking surface is comprised of rubberized, shock-absorbing slats which are designed for long-term durability. The treadmill can be inclined for walking uphill, or reversed for walking downhill.
Launchpad
The Launchpad is used to assist patients with embarking and disembarking from Ovation. The Launchpad has a 1,000-pound capacity and smoothly raises and lowers between the treadmill and floor to assist those using a wheelchair to easily access the treadmill.
Accessories

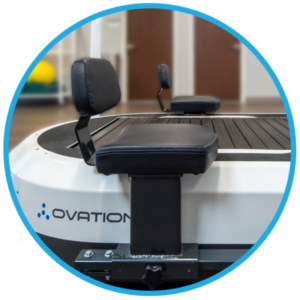

Therapist Seating
For those who anticipate performing manual assisted treadmill training with their patients, seating may be added to Ovation. The seats and footplates are adjustable to fit most therapist preferences.

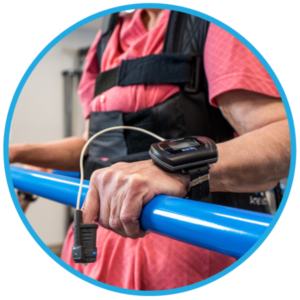

Heart Rate Monitor & Pulse Oximeter
For high-intensity training, therapists can set a target heart rate range in the Ovation software. If the patient’s heart rate moves outside this range, Ovation will notify the therapist with audio and/or visual alerts.
BX Harness
Allows patients with waist sizes between 54 – 74 inches and weighing up to 700 pounds. The padded panels and shoulder straps provide a comfortable fit without compromising safety.
Technical Specifications
Body-Weight Support: Dynamic 25-300 lbs | Static up to 700 lbs
User-Interface: Touchscreen Windows PC and wireless tablet
Installation: Floor mounted, minimum 10-foot ceiling height
Electrical: 1 x 208-230 VAC, 20 amp, 1 x 110 VAC, 15 amp
Warranty: 2 years on all hardware (1-year on harnesses)
